FINCH Laser Camera
Overcoming the challenge of large field-of-view and high-precision imaging with advanced laser technology for top-tier industrial applications.
FINCH
FINCH
Key Features
Superior Light Resistance
Leveraging the high energy of laser light, the Finch series delivers outstanding performance even in complex lighting environments and when imaging dark, highly-reflective objects.
Expansive Field of View & Depth
The laser beam provides an exceptionally large depth of field compared to traditional optics, meeting customer demands for imaging large scenes with clarity.
Efficient Onboard Computing
Equipped with an NVIDIA Jetson Nano core, the camera handles control and point cloud analysis internally, reducing the processing load on the host PC and ensuring faster, more stable performance.
Stable and Mature Technology
A proven solution widely applied in industrial inspection, automatedproduction, and robotics navigation, delivering reliable results in high-endscenarios.
Point Clouds

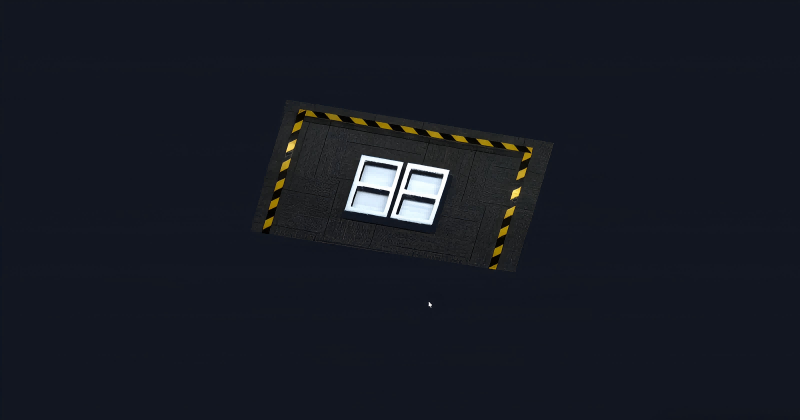

Metal Parts

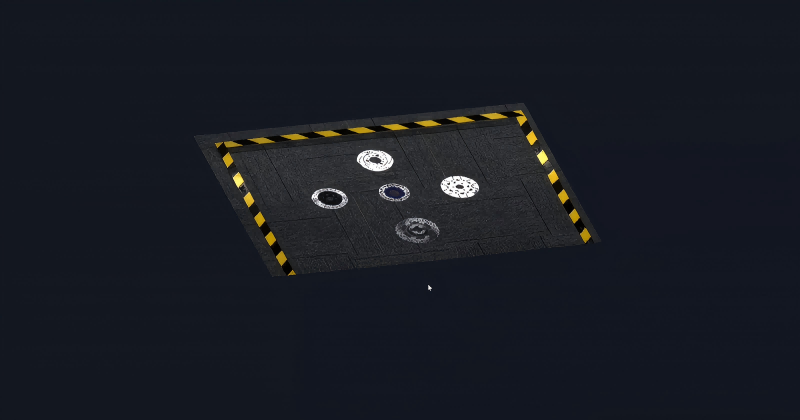

Highly Reflective Brake Discs

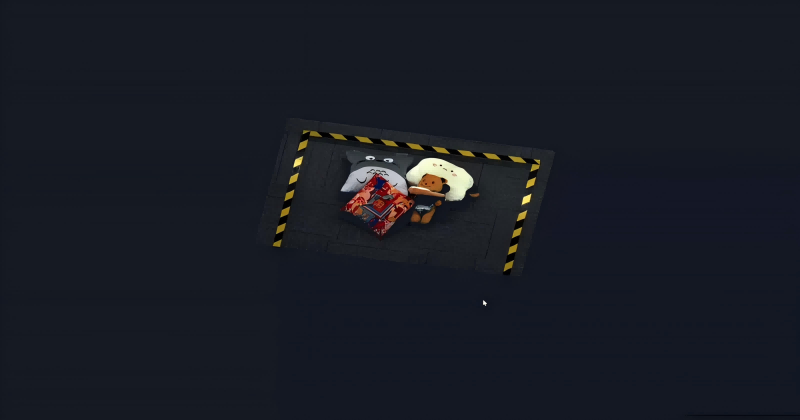

Plush Toys

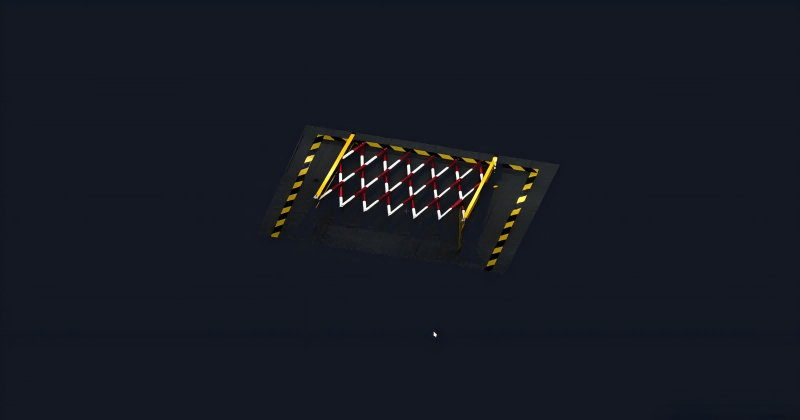

Fence
Cartons
Specifications
| ||
FINCH-W | ||

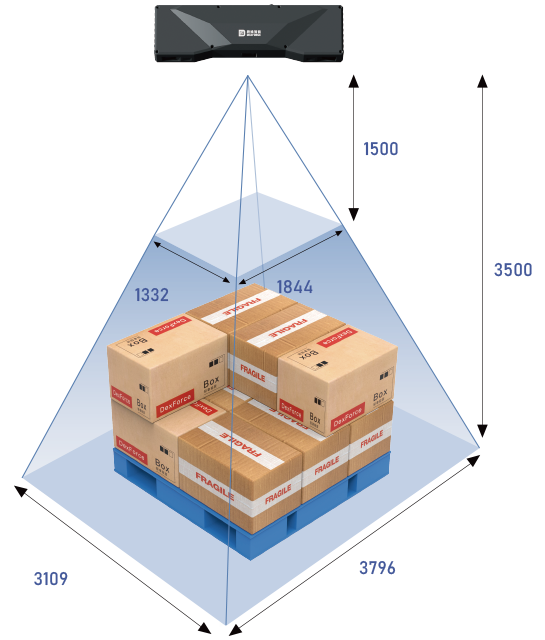

| Technical Parameters | Near Field of View(mm) | 1844×1332 |
| Far Field of View(mm) | 3796×3109 | |
| Recommended Working Distance(mm) | 1500-3500 | |
| Z-axis Accuracy | 0.65mm@3.0m | |
| Z-axis Repeatability σ(μm) | 72@15-3.5m | |
| Point Spacing | Mono:1.13mm@1.5m 2.63mm@3.5m Color: 0.93mm@1.5m 2.17mm@3.5m | |
| Typical Capture Time(s) | 0.8-2.0 | |
| Output Data | Point Cloud, Depth Map, Grayscale Image(Color Image) | |
| Supported Operating Systems | Windows, Linux (Ubuntu20.04) | |
| SDK Interface | C/C++/C#/python | |
| Hardware Parameters | Field of View (H/V) | 57°/48° |
| Dimensions (mm) | 465×130×69 | |
| Weight (kg) | 2.70 | |
| Baseline Length (mm) | 400 | |
| Resolution (px) | Mono: 1624×1240 Color: 2272×1648 | |
| Interface Type | Gigabit Ethernet | |
| Computing Unit | NVIDIA Jetson nano | |
| Rated Voltage | DC 24V ≥2A | |
| Operating Temperature | -10~30°C | |
| Certifications | CE/FCC/RoHS | |
| IP Rating | IP65 | |
Camera Selection & Field of View Calculation
